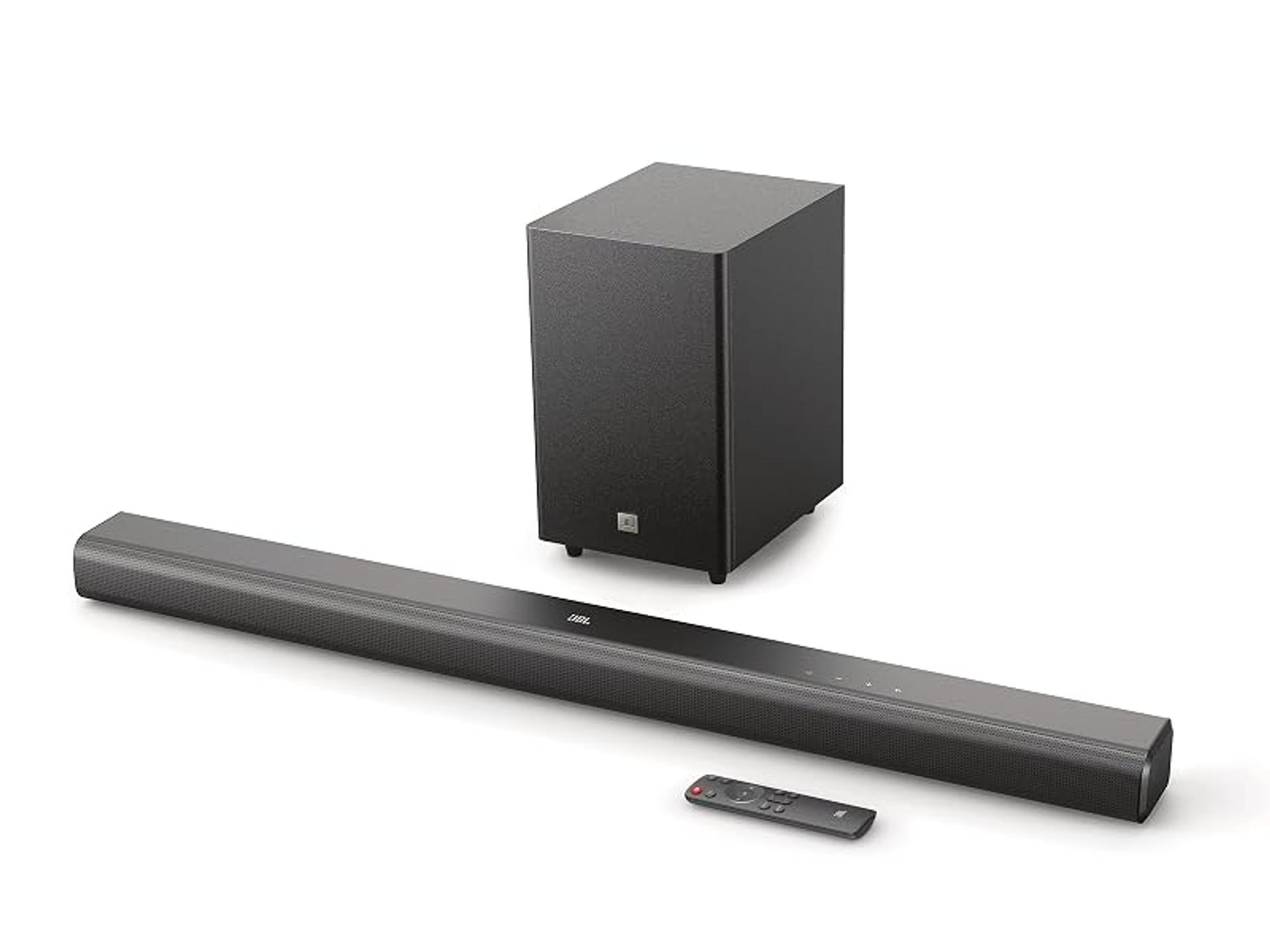

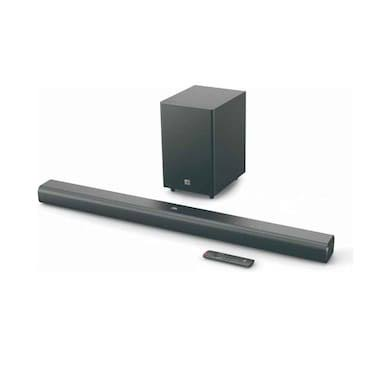

JBL Cinema SB550 3.1 – Channel Soundbar with 250W Dolby Audio & Subwoofer

Product description

Brand

JBL

Speaker maximum output power

250 Watts

Frequency response

20 KHz

Connectivity technology

Bluetooth, HDMI

Audio output mode

Surround

About this item

• Dedicated center channel provides superior voice clarity
• 250W power output
• Wireless subwoofer for extra deep bass
• One cable connection with HDMI ARC
• Wireless music streaming via Bluetooth
• Dolby Audio embedded

Dedicated center channel provides superior voice clarity 250W power output Wireless subwoofer for extra deep bass One cable connection with HDMI ARC Wireless music streaming via Bluetooth Dolby Audio embedded

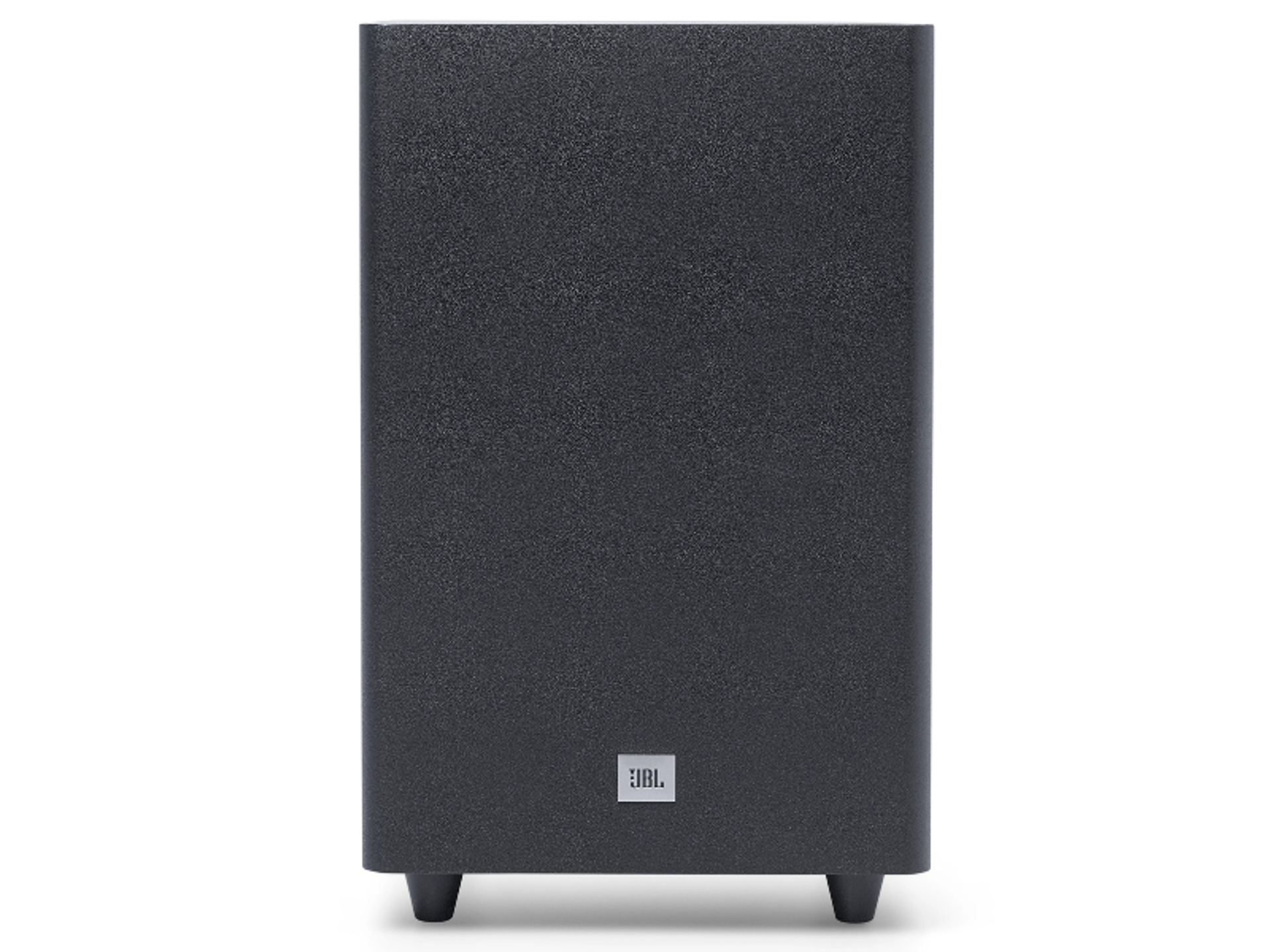

Wireless subwoofer for extra deep bass

Enjoy deep and thrilling bass and clutter-free experience.

250W power output

Incredible, powerful sound for an immersive cinematic experience.

Technical specifications

General specification

• Model: CINEMA SB550 • Sound system: 3.1 channel • Power supply: 100 – 240 V AC, ~ 50/60 Hz • Total speaker power output (Max @THD 1%): 250 W • Soundbar output power (Max @THD 1%): 150 W • Subwoofer output power (Max. @THD 1%): 100 W • Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 2x 13 mm tweeters • Subwoofer transducer: 5.25″ (133 mm), wireless subwoofer • Standby power: < 0.5 W • Operating temperature: 0°C – 45 °C

HDMI specification

HDMI ARC (Audio Return Channel): 1 • HDMI HDCP version: 1.4

Audio specification

• Frequency response: 45 Hz – 20 kHz (-10 dB) • Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB specification

• USB port: Type A • USB rating: 5V DC, 0.5A • Supporting file formats: mp3 • MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 • MP3 sampling rate: 16 – 48 kHz • MP3 bitrate: MPEG 1 Layer 1: 32 kbps – 448 kbps; MPEG 1 Layer 2: 32 kbps – 384 kbps; MPEG 1 Layer 3: 32 kbps – 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps – 256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps – 160 kbps

Wireless specification

• Bluetooth version: 5.3 • Bluetooth profile: A2DP 1.3, AVRCP 1.6 • Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz • Bluetooth Max. transmitting power: <10 dBm (EIRP) • Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK • 2.4G wireless transmitter frequency range: 2402 – 2481 MHz • 2.4G wireless transmitter power: <10 dBm (EIRP) • 2.4G wireless modulation: GFSK

Dimensions

Soundbar dimensions (W x H x D): 950 x 64 x 80 mm / 37.4″ x 2.5″ x 3.1″ • Subwoofer dimensions (W x H x D): 200 x 324 x 250 mm / 7.9″ x 12.8″ x 9.9″ • Soundbar weight: 2.5 kg / 5.5 lbs • Subwoofer weight: 4.2 kg / 9.3 lbs • Packaging dimensions (W x H x D): 1025 x 235 x 397 mm / 40.4″ x 9.3″ x 15.6″ • Packaging weight: 8.8 kg / 19.4 lbs

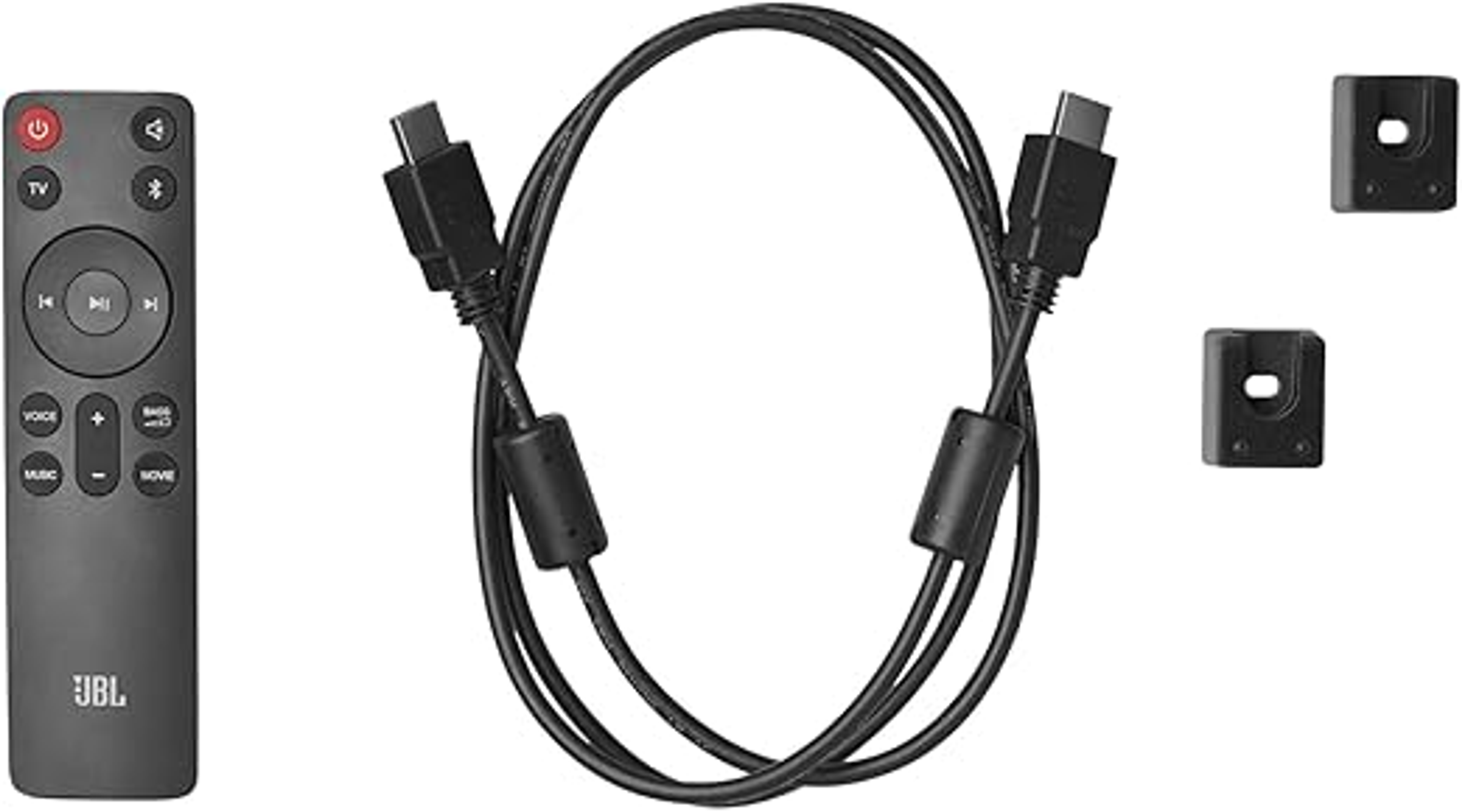

What’s in The Box?

• Soundbar
• Wireless subwoofer
• Remote control with batteries
• Power cords (up to 8pcs depending on region SKUs)
• HDMI cable
• Wall-mount bracket kit with screws
• Quick start guide
• Safety sheet
