Product description

Short Product Description

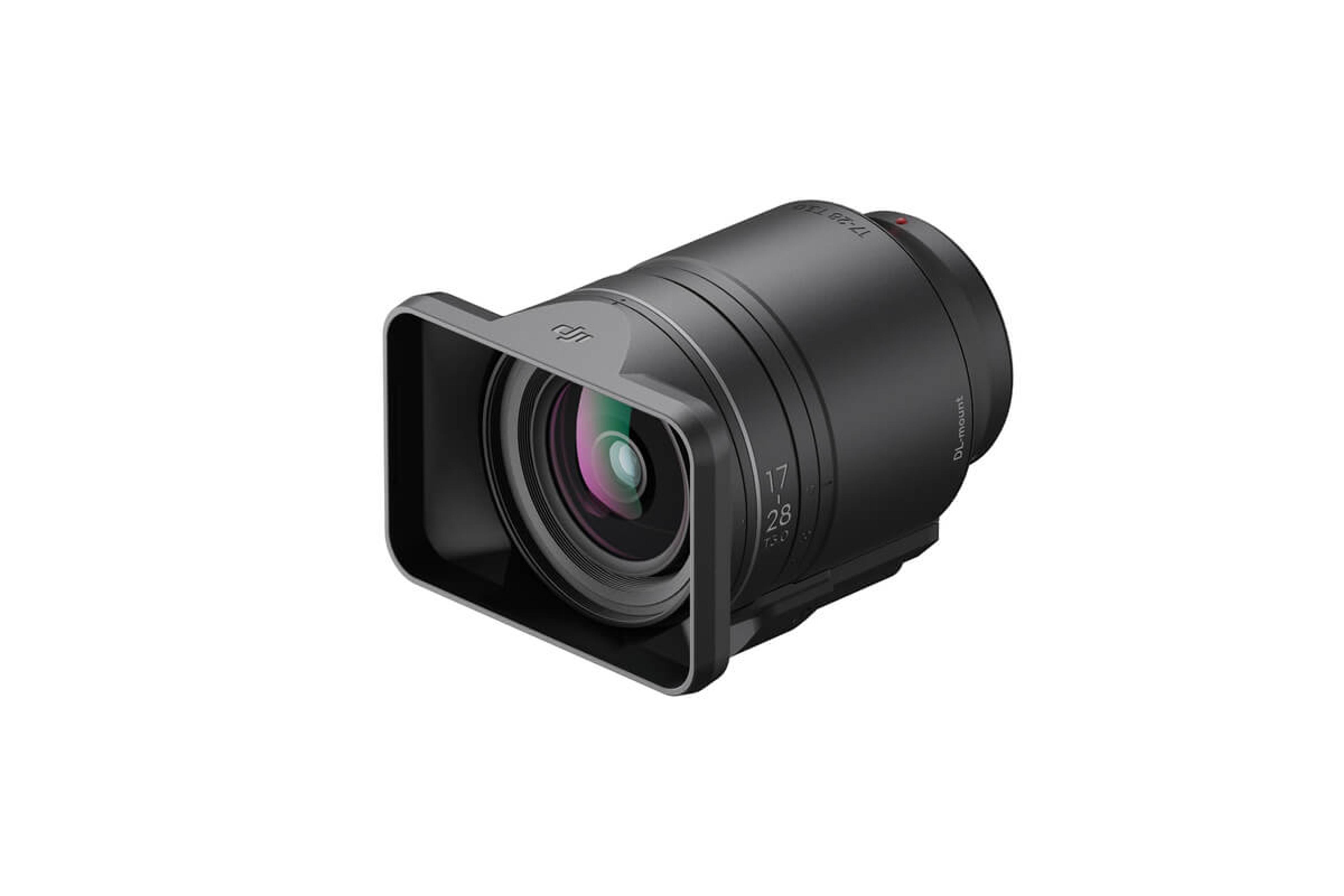

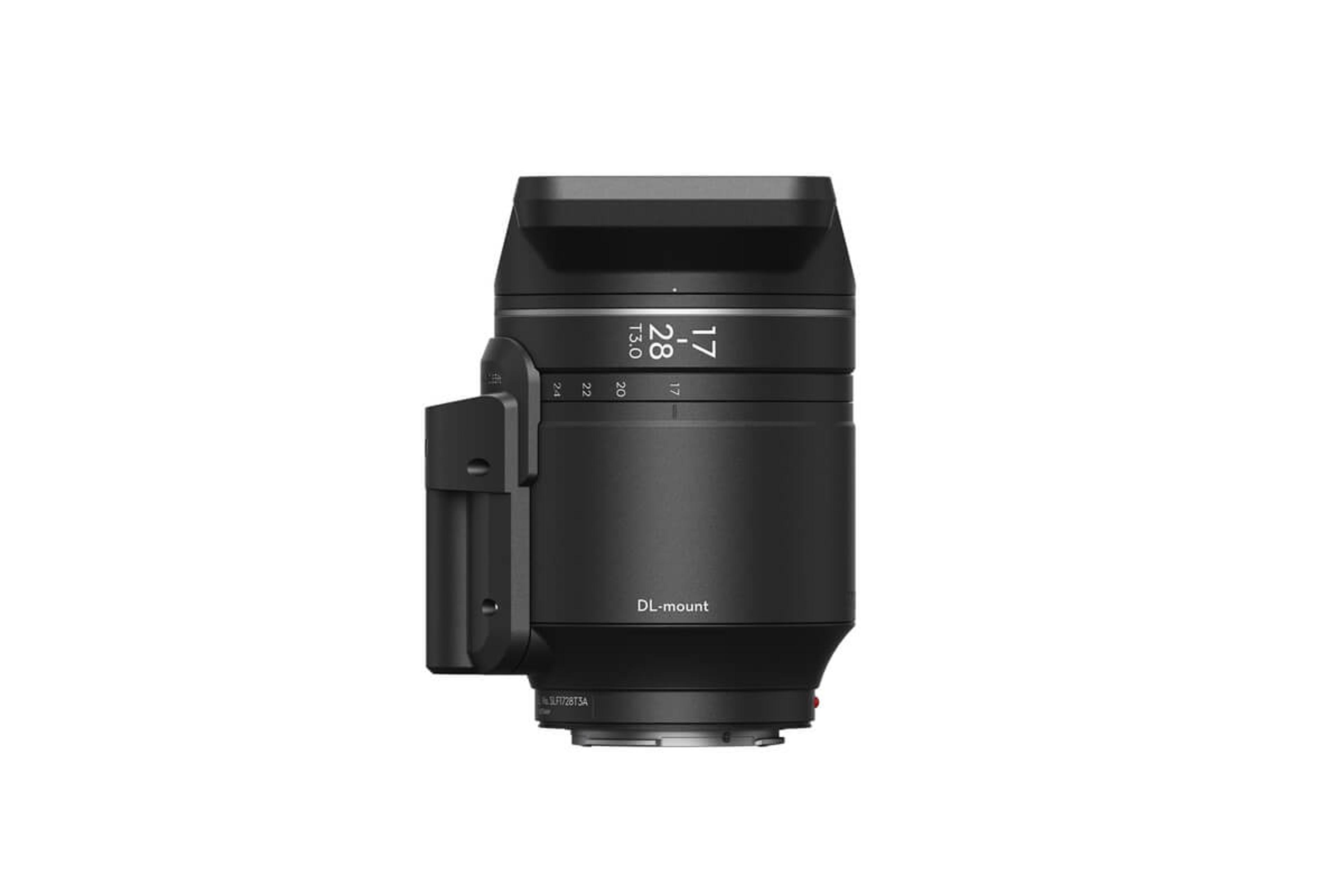

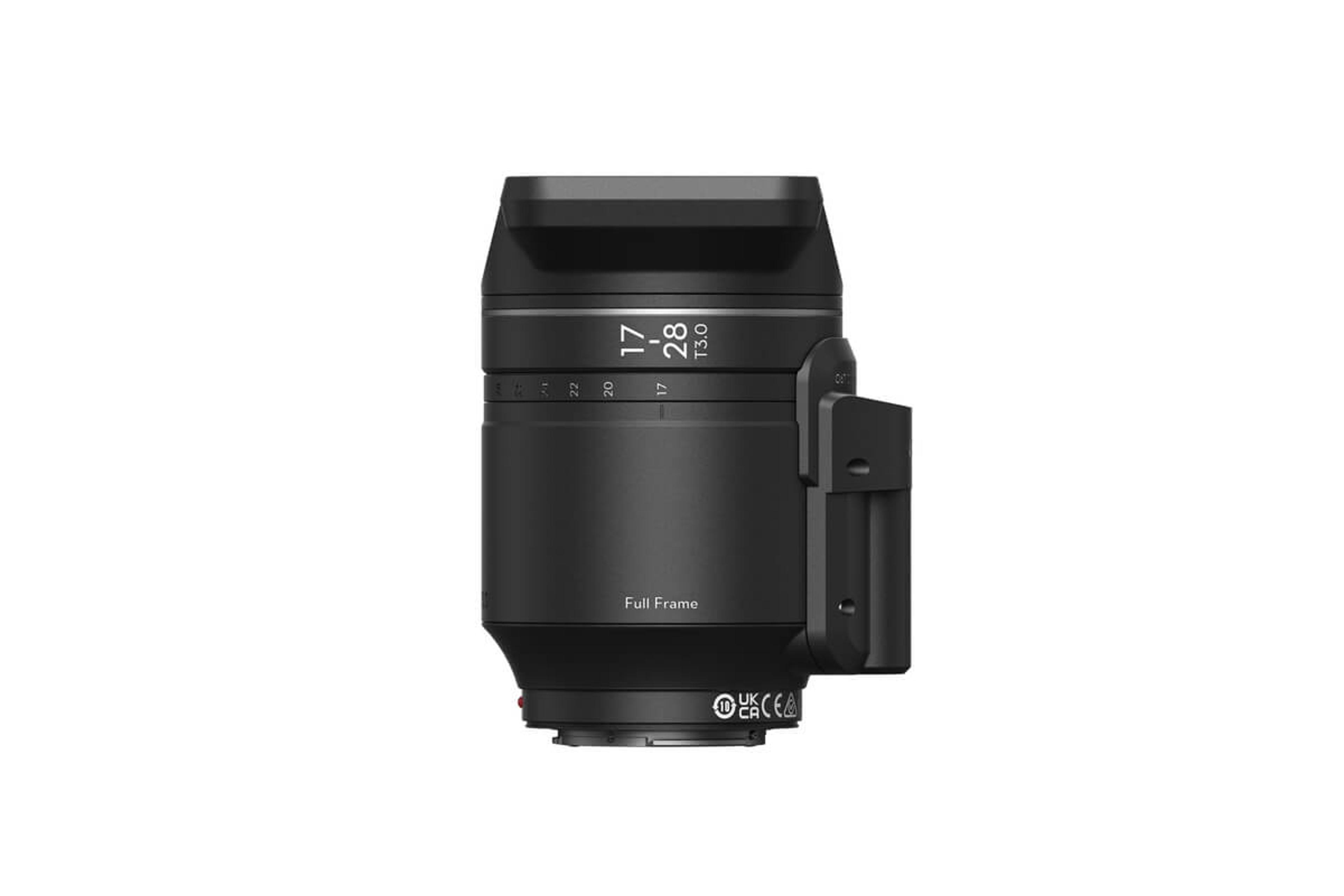

The DJI DL PZ 17-28mm T3.0 ASPH Lens is a professional full-frame cinema zoom lens designed for the DJI Ronin 4D platform. Covering an ultra-wide 17mm to wide-angle 28mm focal range, it provides flexible framing for cinematic productions, landscapes, architecture, interiors, documentaries and dynamic handheld or gimbal shooting.

With a constant T3.0 aperture, high-resolution optical performance and an integrated servo zoom motor, the lens is designed for professional video production. Its lightweight aluminium-magnesium alloy construction weighs approximately 520g including the lens hood, while the internal zoom movement stays within approximately 5mm, allowing zooming on the Ronin 4D without requiring rebalancing.

Full Product Description

Ultra-Wide 17-28mm Zoom Range

The 17-28mm focal range provides a versatile perspective for professional filmmaking. At 17mm, the lens offers an ultra-wide field of view that is useful for landscapes, architecture, interiors and establishing shots. At 28mm, it provides a more natural wide-angle perspective suitable for subjects, scenes and general cinematic coverage.

Constant T3.0 Aperture

The lens features a T3.0 maximum aperture, providing consistent light transmission throughout the zoom range. The aperture can be adjusted from T3.0 to T22, giving filmmakers flexibility over exposure and depth-of-field control.

High-Resolution Optical Performance

DJI designed the lens to deliver high resolution from the centre to the edges of the frame and to meet the imaging requirements of high-resolution cinema sensors, including 8K sensors. The optical design consists of 13 elements in 11 groups.

Built-In Servo Zoom Motor

The integrated servo zoom motor allows powered zooming without requiring an external zoom motor. This keeps the setup more compact and simplifies operation on compatible DJI cinema camera systems.

Zoom Without Rebalancing

One of the major advantages for Ronin 4D users is the lens's internal zoom design. The lens tube moves within approximately 5mm during zooming, so the camera does not require rebalancing after changing focal length. This is particularly useful when shooting continuously on a gimbal.

Calibration-Free Focusing

The lens is designed to provide accurate focusing without requiring traditional lens calibration after installation on compatible DJI systems. This helps streamline setup and allows filmmakers to get ready for shooting more quickly.

Close-Focus Capability

The lens offers a minimum object distance of 0.19m at 17mm and 0.26m at 28mm, allowing filmmakers to capture close-up subjects while maintaining a wide perspective.

Lightweight Professional Construction

The lens uses an aluminium-magnesium alloy body, helping maintain rigidity and durability while keeping the overall weight low. At approximately 520g including the lens hood, it is designed to work effectively within a professional gimbal-based setup.

67mm Filter Diameter

The lens features a 67mm filter diameter, allowing the use of compatible filters for controlling exposure, reflections and other visual characteristics during production.

DJI DL Mount

The lens uses DJI's DL mount and is designed for compatible DJI cinema camera systems, including the Zenmuse X9-6K and Zenmuse X9-8K gimbal cameras used with the DJI Ronin 4D platform.

Specification

Product: DJI DL PZ 17-28mm T3.0 ASPH Lens
Product Type: Full-Frame Cinema Zoom Lens
Brand: DJI
Lens Series: DJI DL
Lens Mount: DJI DL Mount
Compatible Camera System: DJI Ronin 4D
Compatible Gimbal Cameras: Zenmuse X9-6K and Zenmuse X9-8K
Sensor Format: Full Frame
Imager Size: 36 × 24mm
Focal Length: 17-28mm
Maximum Aperture: T3.0
Minimum Aperture: T22
Aperture Range: T3.0-T22
Optical Design: 13 elements in 11 groups
Minimum Object Distance at 17mm: 0.19m
Minimum Object Distance at 28mm: 0.26m
Filter Diameter: 67mm
Zoom Type: Power Zoom
Zoom Motor: Built-in Servo Zoom Motor
Focus: Calibration-free focusing on compatible DJI systems
Image Stabilization: No
Lens Body Material: Aluminium-magnesium alloy
Lens Diameter: 78mm maximum
Length Without Hood: 100.1mm
Length With Hood: 117.2mm
Weight: Approximately 520g including lens hood
Operating Temperature: -10°C to 55°C
Storage Temperature: 10°C to 35°C
Storage Humidity: 45%-75%
Zoom Rebalancing: No rebalancing required on Ronin 4D during zooming
Colour: Black
Use: Professional filmmaking, cinematography, documentary, commercial and creative video production

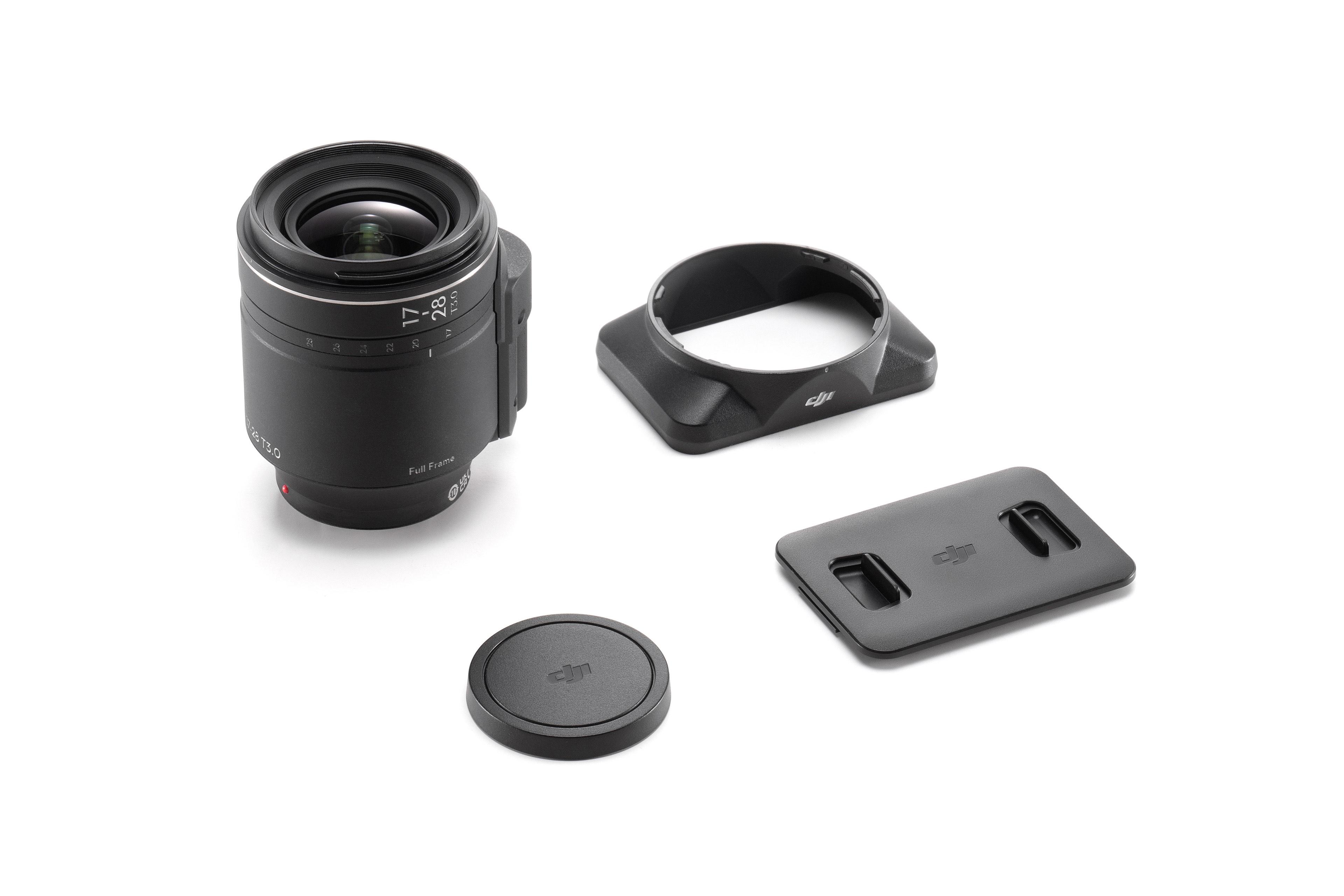

What's in the Box

DJI DL PZ 17-28mm T3.0 ASPH Lens × 1
Lens Hood × 1
Lens Front Cap × 1
Lens Rear Cap × 1

Compatibility

Compatible with: DJI Ronin 4D-6K and DJI Ronin 4D-8K systems using the compatible Zenmuse X9 gimbal cameras.
